Edelbrock E-Force Supercharged 416 Ci Ls Crate Engine With Full Efi System And Accessories

Description

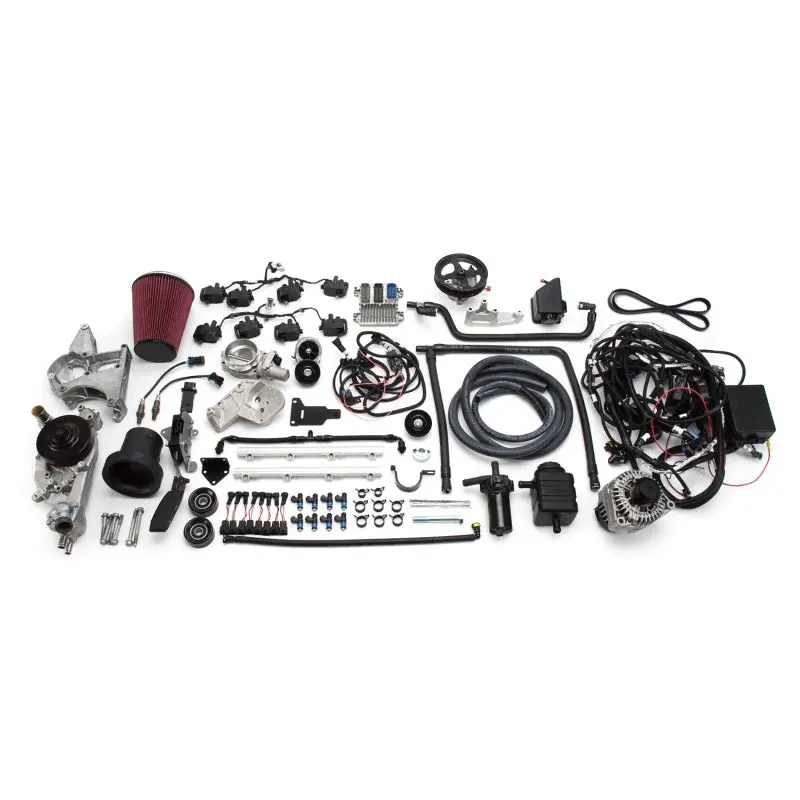

Available from Edelbrock is a complete 416 c.i.d. supercharged, LS engine, that produces an astounding 720 horsepower and 695 ft.-lbs. of torque, on 91 octane pump gas. The foundation of this engine is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons. The 4.0 stroke, and 4.065 bore pushes this LS3 out to a whopping 416 c.i.d., for incredible low end torque. The 9.5:1 compression ratio allows for safe and reliable supercharged performance on 91 octane pump gas. Helping this engine breathe is the Edelbrock E-Force LS3 supercharger system. This great looking system features Eaton TVS 2300cc/rev rotors, which provide unparalleled efficiency, whisper quiet operation and OEM reliability. This engine package comes complete with essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger equipped on this engine features a drivers side throttle body orientation for ease of intake routing and a Corvette belt offset for a compact installation. (Other belt offsets and inlet orientations available upon request.) Pair with universal heat exchangers #15405, #15406 or #15407 for a complete installation.
